MS91405 (AOLA)

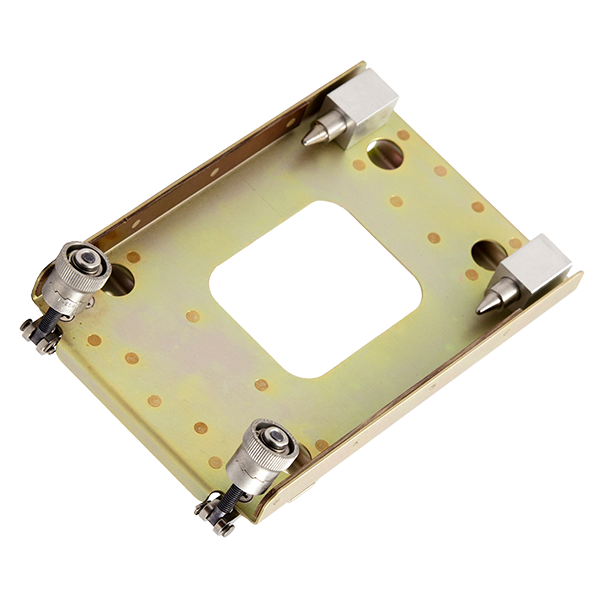

MS91405 (AOLA) Trays: MS91405 is a Military Standard for Large-Size mounting bases for use with electronic equipment in aircraft. There are two (2) basic sizes with two (2) standard load ranges each with up to seven (7) optional load ranges each with a maximum load of 80 pounds.

• AOLA trays are completely compatible with the environmental requirements of specifications MIL-C-172, (legacy MIL-E-5400, MIL-E-5272) and MIL-STD-810.
• MS 91405 mounting bases exhibit low natural frequencies, low transmissibility at resonance and a high degree of isolation in the higher frequency ranges.
• AOLA mounting bases have lightweight ruggedized aluminum structural frames supported by four MS type isolators*, including electrical grounding straps.
• AOLA Trays for helicopter applications are available.
• Retention mechanisms to MS14108 or M85731.
• *Isolation mounts are to MS91527 or MS91418 QPL standards or commercial equivalent.

	Download the AEK MS91405 (AOLA) Tray Builder file
See the AEK MS91405 (AOLA) builder in action.
