S Series

Low-frequency variable air-damped mounts for a high level of vibration isolation. Barry S-Mounts are air-damped isolators and are designed to provide the highest degree of vibration isolation for sensitive commercial and military airborne equipment. S-Mounts are particularly effective at isolating low level vibration.

Applications

Military & Commercial Airborne Equipment
Computers and Storage Devices
Optical Devices & Instrumentation
Lasers
Clinical Diagnostic Equipment

Benefits & Features

Up to 90% isolation efficiency with inputs as low as 40 Hz.
Variable air-damping provides increasing isolation efficiency in high-frequency regions, even when input excursions become small
Meets safety requirements of MIL-E-5400 (30G 11ms half sine pulse)

Load Range

S22 = 6 load ratings from .3 - 3 lbs. per mount

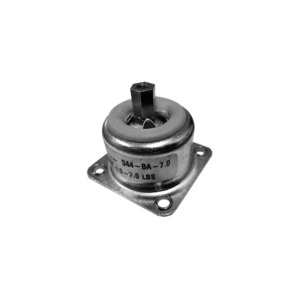

S44 = 7 load ratings from .25 - 9 lbs. per mount

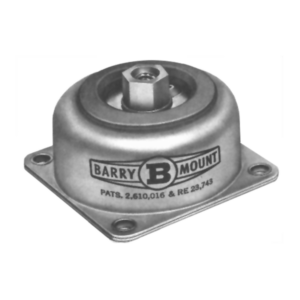

S64 = 7 load ratings from 2.0 - 25 lbs. per mount

Environmental Data

Silicone Air Chambers and Snubbers have operating temperature ranges of -67ºF to +300ºF (-55ºC to +150ºC).
Mounts meet all applicable standards of MIL-C-172 and are fungus and oil resistant.
