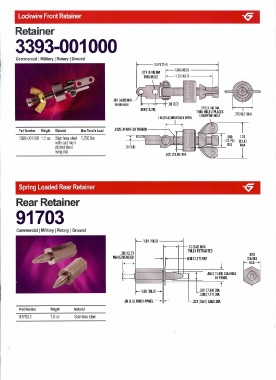

Page 5 - HA-ARS_1014_AEK

Lockwire Front Retainer .('$

Retainer

3393-001000

Commercial I Military IRotary IGround

1+---- 2.97 [75.4] - - - - - - - - - - - . 1

.177 [4.49] D1A 1+--1.94 [49.3]
THRU HOLE +-- 1.72 [43.7] - - -.....

.161 [4.09] OIA .070 [1.78] D1A
THRU HOLE THRU HOLE 2PLACES

.500 [12.70]

1.0 [25.4] MIN FULLY OPEN LOCKWIRE HOLE .75 [19.1] D1A

Part Number Weight Material Max Tensile Load .3125-24 UNF-2ATHREAO - - - + - .

3393-001000 1.6oz Stainless steel 1,750 Ibs .500 1.25
with cadmium -[12.70] [31.8]
plated steel --.u:::J-.~:::::::;;::..J- D1A MAX
wing nut
.625 [15.88] OIA 1

Spring Loaded Rear Retainer .('$

Rear Retainer

91703

Commercial IMilitary I Rotary I Ground

+- 1.91 [48.5] --- • .625
.50 [12.7] 1- "- .12 [3.0] MAX [15.88]
FULLY RETRACTED
-I tHEXj
MAX EXTENDED .046 [1.17] REF
I @j
--I ,t

r)-- - """ .468 [11.89] D1A HOLE
lU---
/' IN PANEL

~ ~I100 (26 OJ t

L .301 [7.64] D1A
.306 [7.77] DIA

.06 [1.6] THICK PANEL +-- L-.221 [5.61] GAGE D1A

Part Number Weight Material

91703-1 1.0oz Stainless steel
