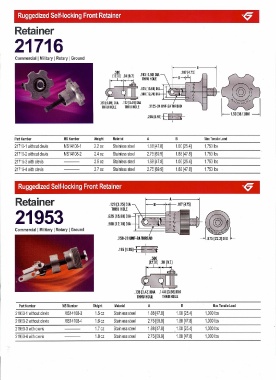

Page 3 - HA-ARS_1014_AEK

Ruggedized Self-locking Front Retainer .($

Retainer

21716

Commercial IMilitary I Rotary IGround

[i~.~~] .38 [9.7] .193 [4.90] D1A
am ~~~~~~i 'I THRUHOLE
.625[15.88] DIA ..-J..r.-4-+--+l-
.500 [12.70] D1A
.161 [4.09] DIA .177[4.49] DIA .3125-24 UNF-2A THREAD
THRU HOLE THRU HOLE
I
< - 1.50 [38.1] DIA ----+
.235 [5.97]-E-E3-

I

Part Number MS Number Weight Material A B Max Tensile Load

21716-1 without clevis MS14108-1 2.2oz Stainless steel 1.88 [47.8] 1.00 [25.4] 1,7501bs
21716-2 without clevis MS14108-2 2.4 oz Stainless steel 2.75 [69.9] 1.88 [47.8] 1,7501bs
21716-3 with clevis 2.50z Stainless steel 1.88 [47.8] 1.00 [25.4] 1,7501bs
21716-4 with clevis 2.7 oz Stainless steel 2.75 [69.9] 1.88 [47.8] 1,7501bs

Ruggedized Self-locking Front Retainer .($

Retainer .128 [3.25] DIA
THRU HOLE
21953
.625 [15.88] D1A :rfB:;=~=P
Commercial IMilitary I Rotary IGround
.500 [12.70] D1A ~~~~~ct

.250-28 UNF-2A lHREAD

I

j.195[4.95]-[+1-

I

.500
[12.70] .38 [9.7]
k--L-+l~

.135 [3.43] D1A .144 [3.66] D1A
THRU HOLE THRU HOLE

Part Number MS Number Weight Material A B Max Tensile Load

21953-1 without clevis MS14108-3 1.50z Stainless steel 1.88 [47.8] 1.00 [25.4] 1,000 Ibs
21953-2 without clevis MS14108-4 1.6oz Stainless steel 2.75 [69.9] 1.88 [47.8] 1,000 Ibs
21953-3 with clevis 1.7 oz Stainless steel 1.88 [47.8] ,1.00 [25.4] 1,000 Ibs
21953-4 with clevis 1.8oz Stainless steel 2.75 [69.9] 1.88 [47.8] 1,OOOlbs
