ARINC 400A TRAYS

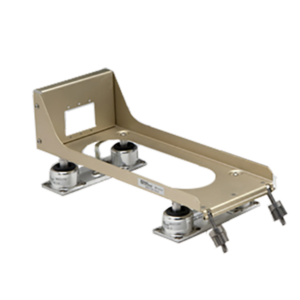

ARINC 404/ARINC 404A: The ARINC 404A standard for trays is one of the most widely used avionics tray types. Trays are generally designed and conform to one or more applicable industry specifications or standards; i.e. ARINC 404, RTCA/DO-160, Mil-STD-810, FAR Part 25, 23 and 21. LRU sizes range from ¼ to 1½ ATR.

There are three (3) basic types of ARINC 404A Trays:

• COMMERCIAL AIRCRAFT ARINC 404A TRAYS

  • Predrilled Mounting Holes
  • Hard Tooled-Assured Connector Mating
  • Short, Long, or Short-Long Versions
  • Seals, Metering Plates for Forced Air Cooling
  • Variety of Hold Downs
  • Large Selection of STD Connector Cutouts
  • Tested to 30g, 11ms Crash Safety (retention)
  • Optional retention mechanisms to MS14108 or M85731
  • Available With or Without Vibration Isolators

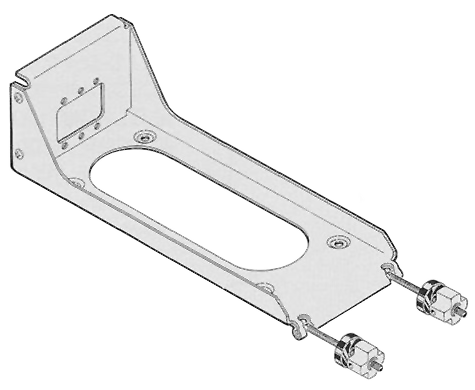

• LIGHTWEIGHT ARINC 404A TRAYS

  • Lowest Cost Off-The-Shelf Tray Available
  • Lightweight Aluminum-0.050 [1.27] Thick
  • Hard Tooled
  • Dimpled Mounting Holes for Pan-Head Screws
  • Optional Stacking Kits and Stand Offs Available
  • Tested to 30g, 11ms Crash Safety (retention)
  • Available With or Without Vibration Isolators
  • Optional retention mechanisms to MS14108 or M85731

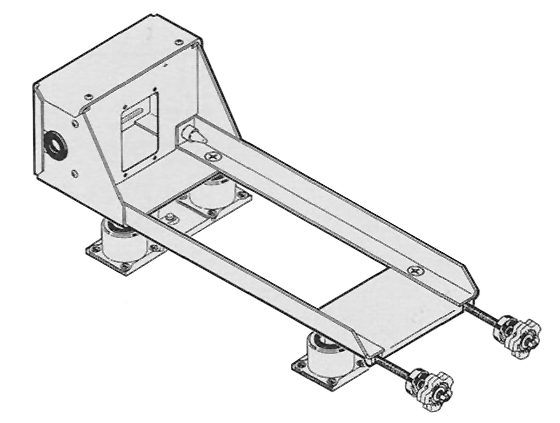

• GENERAL PURPOSE ARINC 404 TRAYS
  • Designed to Original ARINC 404 Legacy Specification
  • Rear Guide Pins for Older Equipment
  • Rear Dust Cover to Protect Connector
  • Blank Panels for Special Applications
  • Tested to MIL-STD-810D Crash Safety (retention)
  • Available with or without Vibration Isolators
