TTB Series

Mid-frequency, low profile, high deflection mounts for protection from severe vibration and shock. Barry TTB Mounts are mid-frequency isolators with a large deflection capacity, designed to give both shock and vibration isolation protection. The standard Neoprene version is for applications where temperature.

Applications

Shipping Containers
Airborne Electronics & Racking
Shipboard Equipment
Mobile Mounted Equipment
Other applications where high amplitude, low frequency vibration is present

Benefits & Features

Attenuates a 15g, 11 millisecond half-sine shock to 10g's
Attenuates a 30g, 11 millisecond half-sine crash safety shock to 16g's
Lightweight
Available in Silicone or Neoprene
Axial to radial stiffness of 2.3:1
Mid frequency isolation
Aluminum construction

Load Range

3 load ratings to 30 lbs. per mount

Environmental Data

HI-DAMP™ version (silicone) operating temperature range is -67°F to +300°F (-55°C to +150°C) and is resistant to fungus and ozone.
Neoprene operating temperature range is -20°F to +180°F (-30°C to +82°C) and is resistant to oil and ozone.

Showing all 2 results

TTB

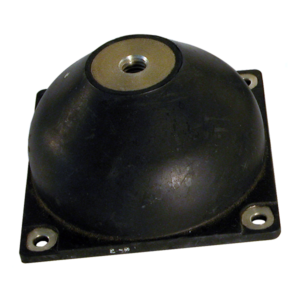

TTNB
