MS Series

MS Series Vibration Isolation Mounts are a Series of Low Frequency (7-10Hz) Mounts Originally Designed for use with Electronic Equipment in Aircraft.

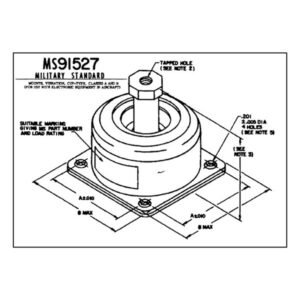

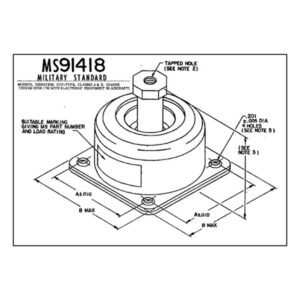

They are Separated into two (2) Series MS91418 and MS91527 with the Primary Difference Between the two (2) Being the Internal Thread Type in the Core; Coarse (UNC) or Fine (UNF).

Both Series Offer Three (3) Geometries (Housing Sizes), with 70+ Options for Combinations of Load Rating and Core Styles of Long or Short.  Each Standard has Available Load Ratings from 1 to 80 pounds, that are Separated into Very Narrow Bandwidths for each Part Number with some Overlaps.

Part Number Sequencing Provides:

• The MS Standard
• The Size/Geometry
• The Class by Load Range Value Method
• The Load Rating Within the Size and Class
• The Core Type, Long or Short

Hutchinson MS Series Mounts Meet QPL Mechanical and Performance Requirements Established by the USA DoD.
